Rear diffusers are extremely efficient downforce producing devices when designed properly. We set out to produce a functional rear diffuser for the Porsche 987.1 and 987.2 using state of the art R&D processes. The assembly blends function and form utilizing carbon fiber, sheet metal, and hard rubber.
Utilizing scan data, CAD, and ANSYS Fluent analysis software; we were able to design and produce a functional and aesthetically pleasing rear diffuser for this Porsche chassis.

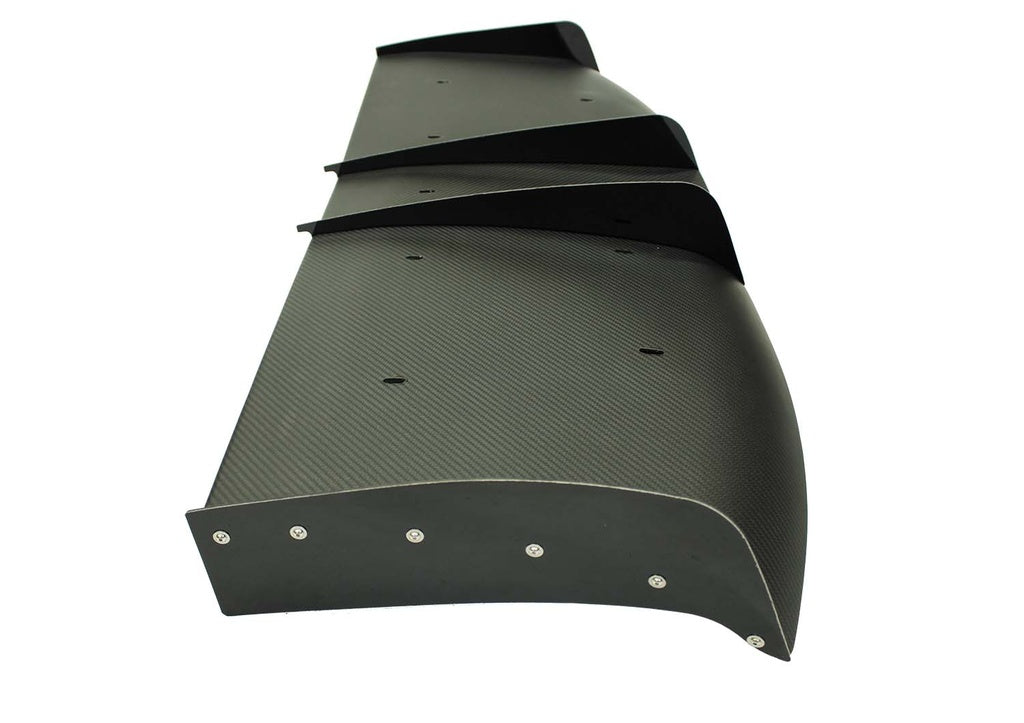

The three main diffuser planes are produced from 2x2 twill, autoclave cured, carbon fiber; while the strakes are manufactured from durable polyurethane for longevity.

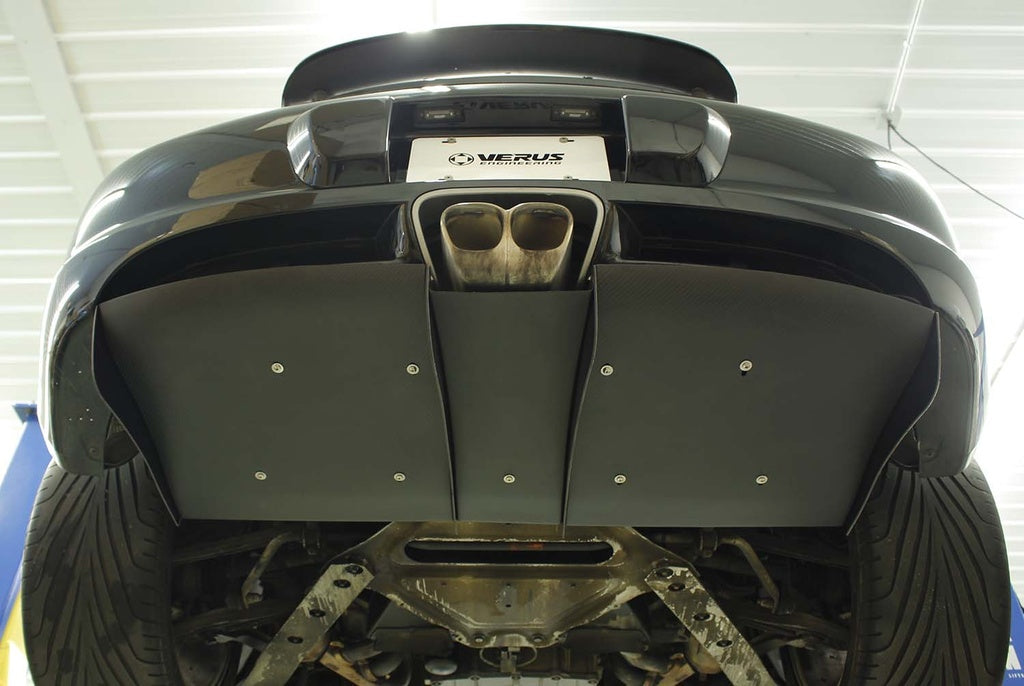

The entire unit bolts to chassis locations through multiple sheet metal brackets. There is absolutely no drilling or fabrication required for installing this rear diffuser.

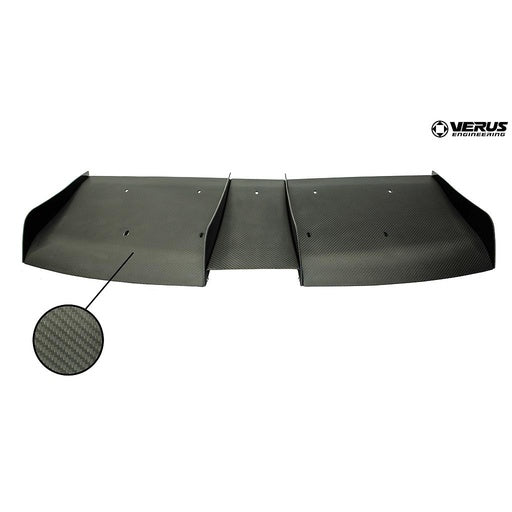

Diffuser Main Plane, Left-Hand
Diffuser Main Plane, Center
Diffuser Main Plane, Right-Hand
Bracket (5)
Strake, Hard Rubber (4)
Hardware Kit, Includes All Hardware Necessary for Install
Features
Improved Vehicle Performance, Both with Increase in Downforce and Reduction In Drag
Analyzed with ANSYS Fluent to Improve Performance Given Build Volume
Flows with the Factory Bumper Lines
Durable and Replaceable Strake Design for Improved Longevity
Modular Design - Able to add on Flat Underbody Cover for Improved Performance
Specifications
2x2 Twill, Autoclave Cured, 1.5mm Thick Carbon Fiber Construction
Lightweight Bonded Carbon Strengthening Sections on Top of Diffuser Main Planes for a Rigid Main Plane
Durable and Replaceable Strake Design
CNC Laser and Bent 5052 Aluminum Brackets
Stainless Hardware Throughout
