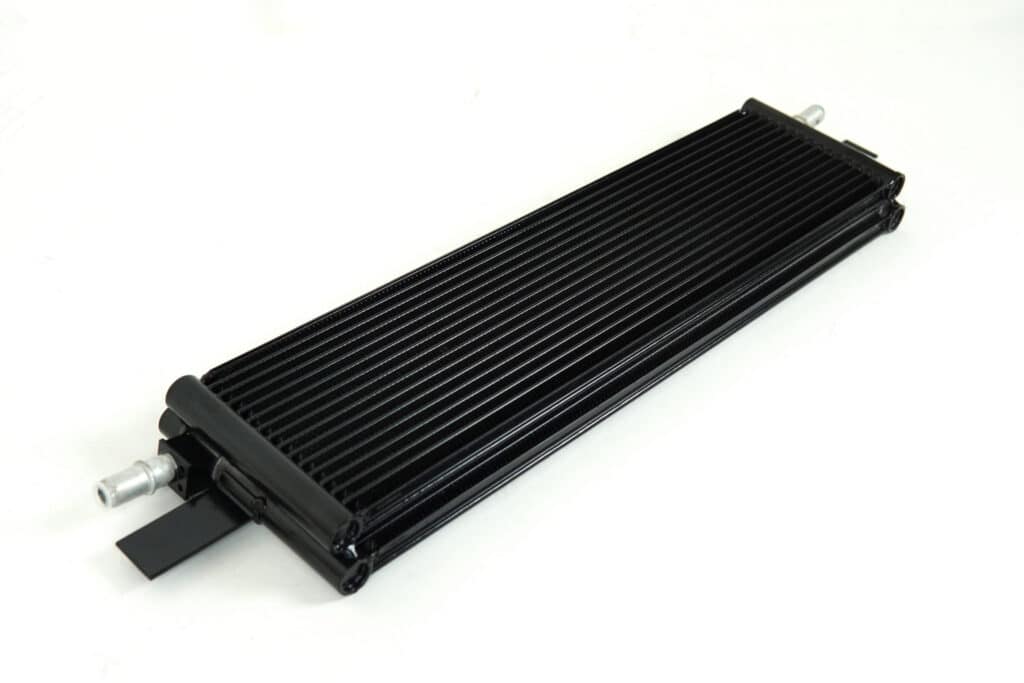

High-Performance Transmission Oil Cooler (CSF #8183)

Toyota

2,250.00 AED
2,250.00 AED
Sale Sold out
  • 5.4mm Tall Multi-Louvered Fin vs. OEM 7mm
  • Made with CSF’s AC Condenser Technology Using a 1-Row Super-High Pressure 16mm 9-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
  • 129mm Overall Height vs. OEM 125mm Allows for Maximum Performance Without Increasing Overall Surface Area or Blocking Airflow to Rest of Cooling System
  • Utilizes OEM Top/Bottom Rubber Seals for Optimal Airflow
  • OEM Style “Quick Connect” Inlet/Outlet Connections
  • Drop-in Fit Requires No Modifications to Install
  • Can be Installed With CSF’s High-Performance Heat Exchanger (CSF #8154) or with the OEM Cooling System
  • 2-Year Limited Warranty
  • Ideal for Road Racing, Drag Racing, and Vehicles With Increased Performance and/or Transmission Tuning
View full details

What Is Included

Features

240% Increase in Core Volume
130% Increase in Fluid Capacity Compared to OEM (CSF 550ml vs. OEM ~240ml)
Two 16mm Stacked Cores = 32mm Core Width (44mm Overall Width) vs. OEM 15mm Core Width
Rear Cooler: 15 Rows vs. OEM 12 Rows
Front Cooler: Additional 12 Rows
