Rear Wing Kit, Includes Carbon Spoiler - 987 Porsche Cayman

Porsche

20,018.00 AED
20,018.00 AED
Sale Sold out

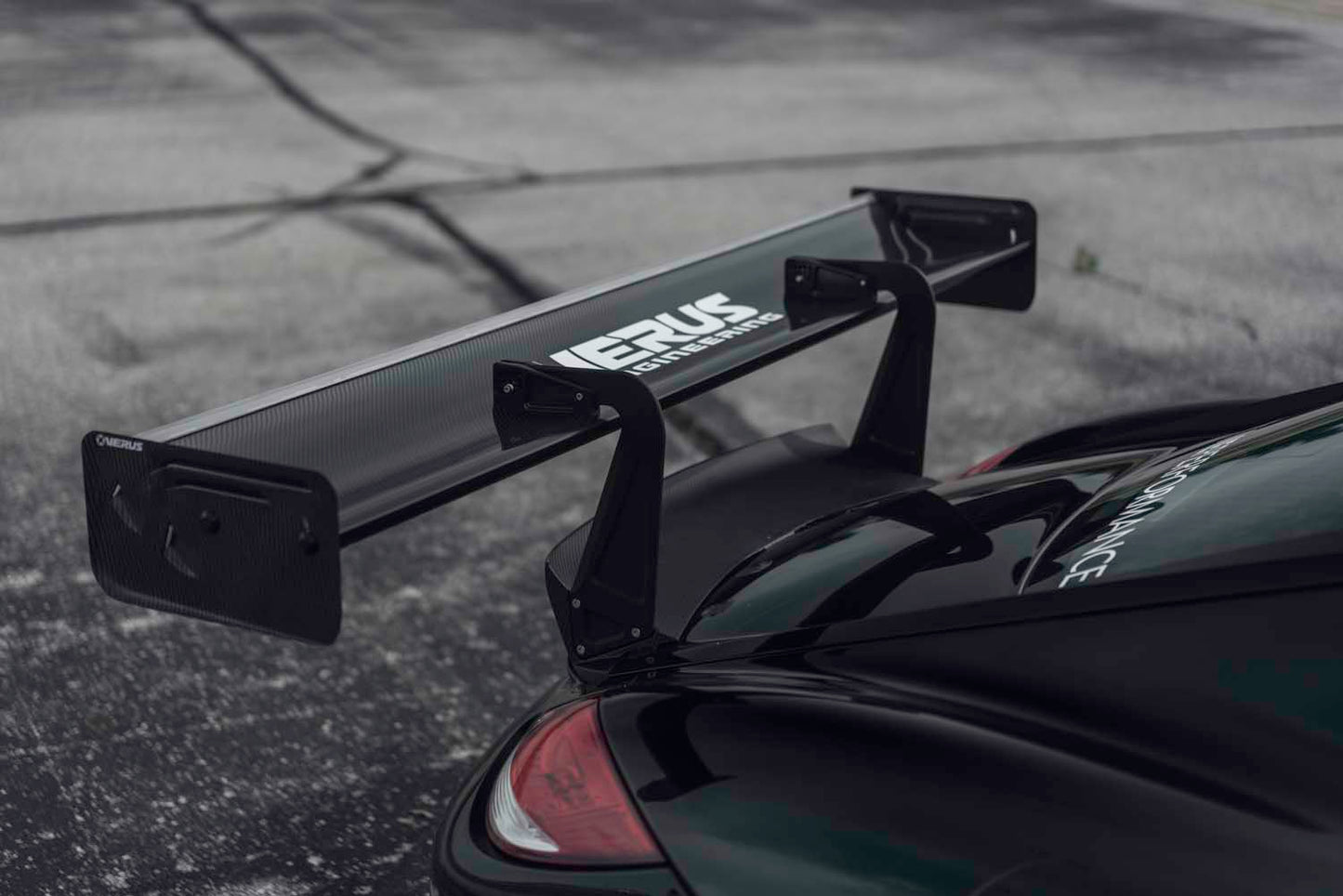

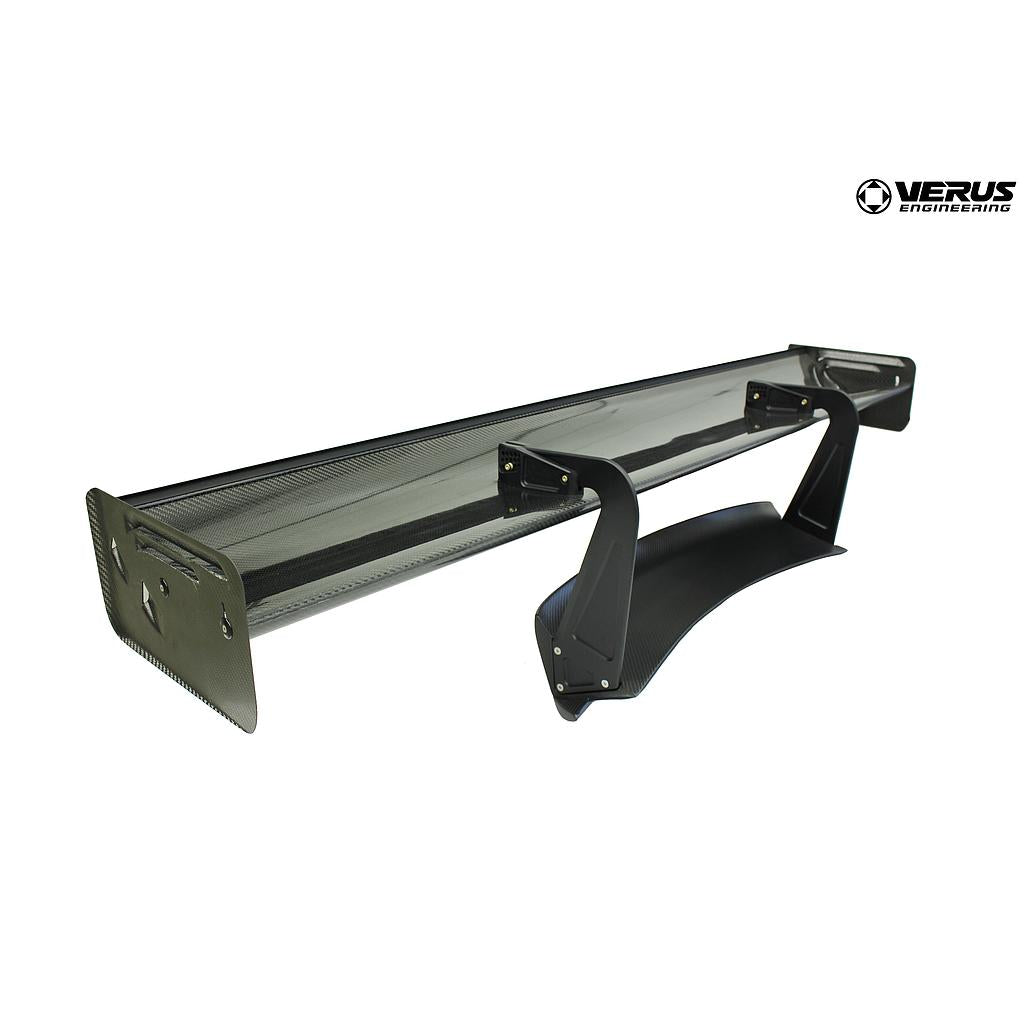

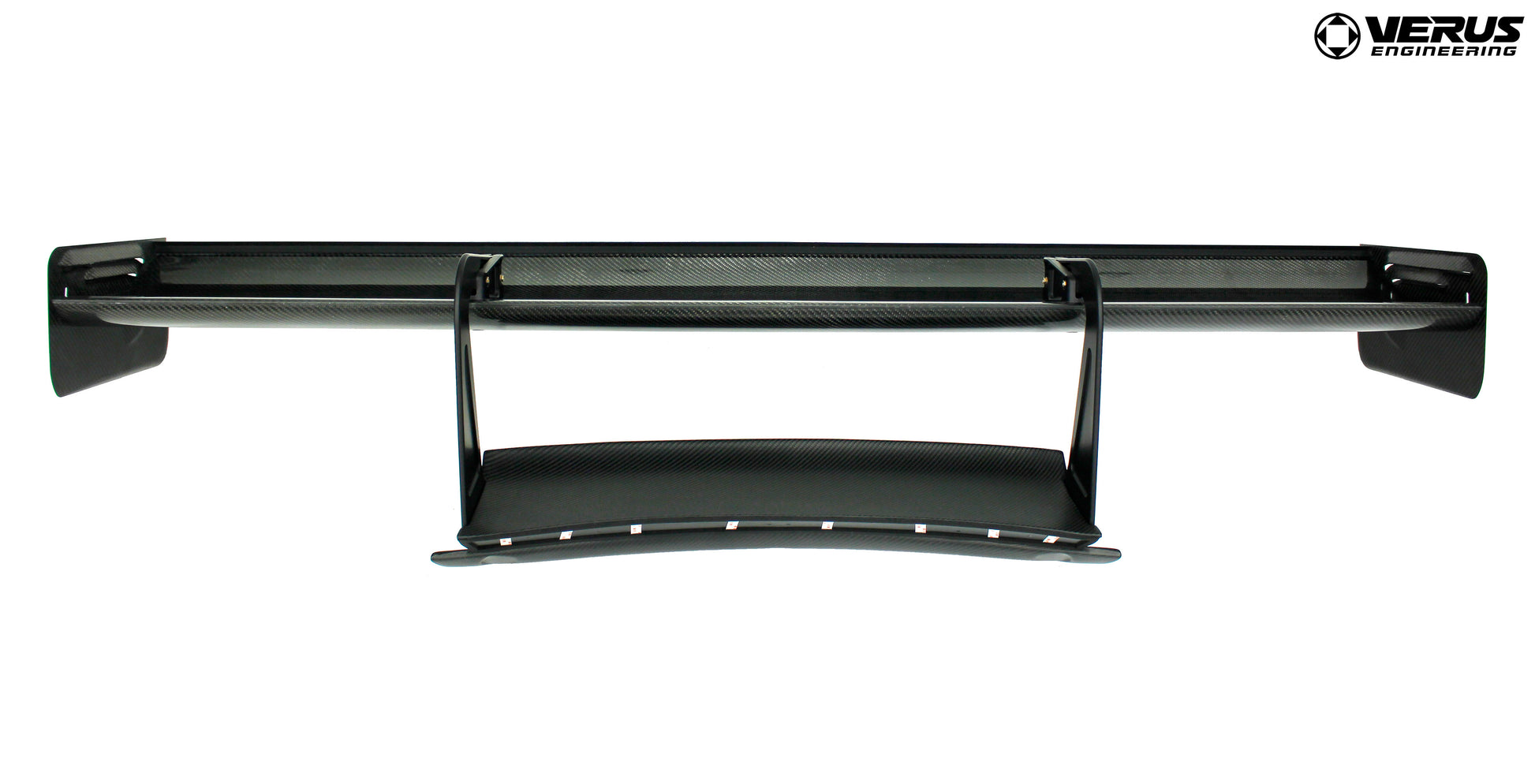

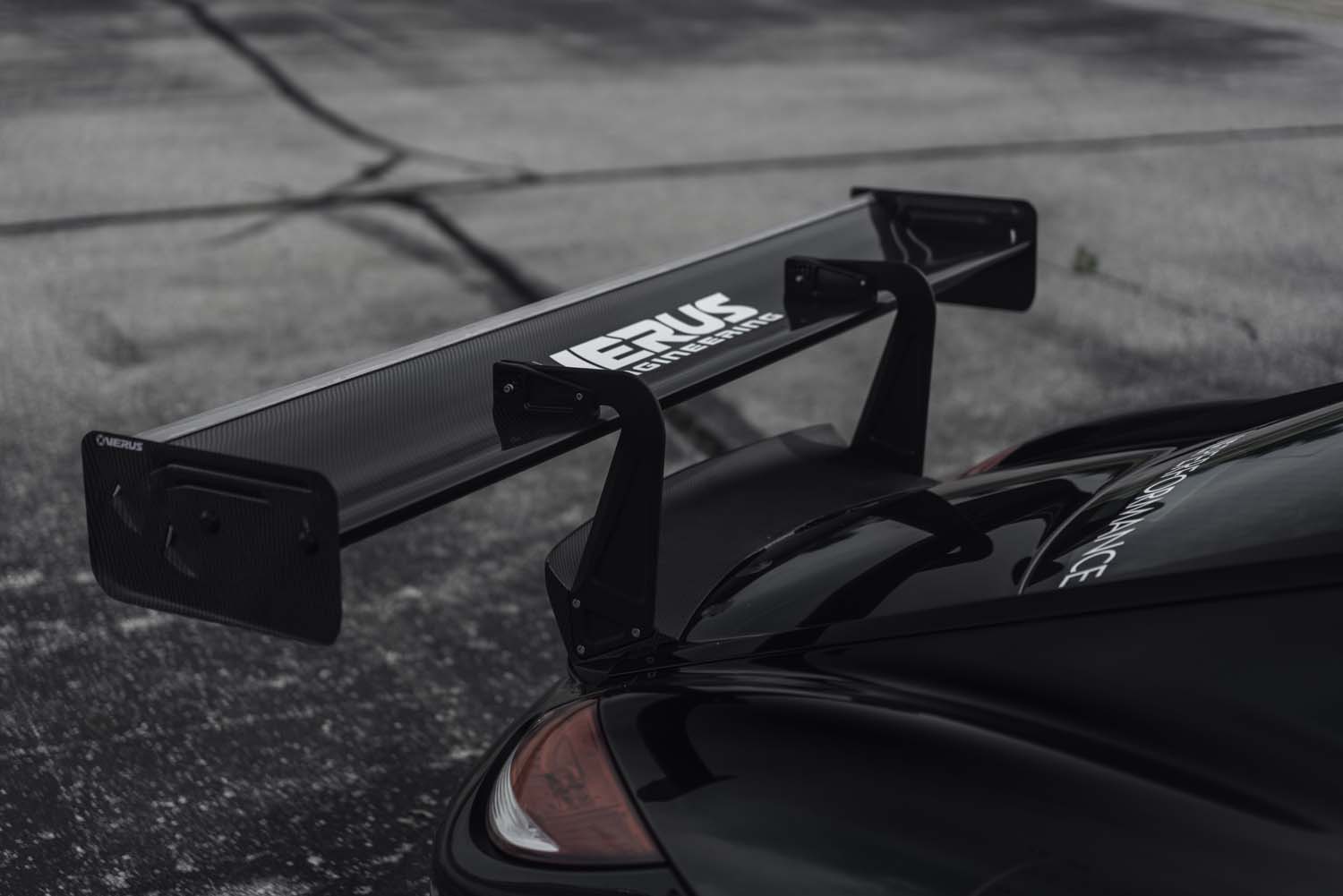

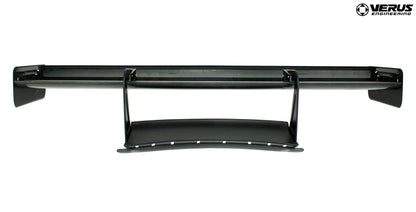

Dramatically improve rear-end grip at speed with our 300mm chord, swan neck wing with carbon spoiler for the 987 Porsche.

The wing and full aero kit were designed in CFD to greatly improve the vehicle's performance around the track. The wing alone has the ability to dramatically reduce lap times.

Construction on the rear wing is the same of that in Motorsport; as it is built by a Motorsport wing provider in the U.S.A.

The uprights are CNC machined from 6061-T6 aluminum and were FEA analyzed to ensure strength was kept high while weight was minimized.  The carbon spoiler installs onto the OE trunk with a multitude of bolts and transfers load through multiple points to the chassis.

View full details

What Is Included

Carbon Rear Wing, 300mm Chord Swan Neck

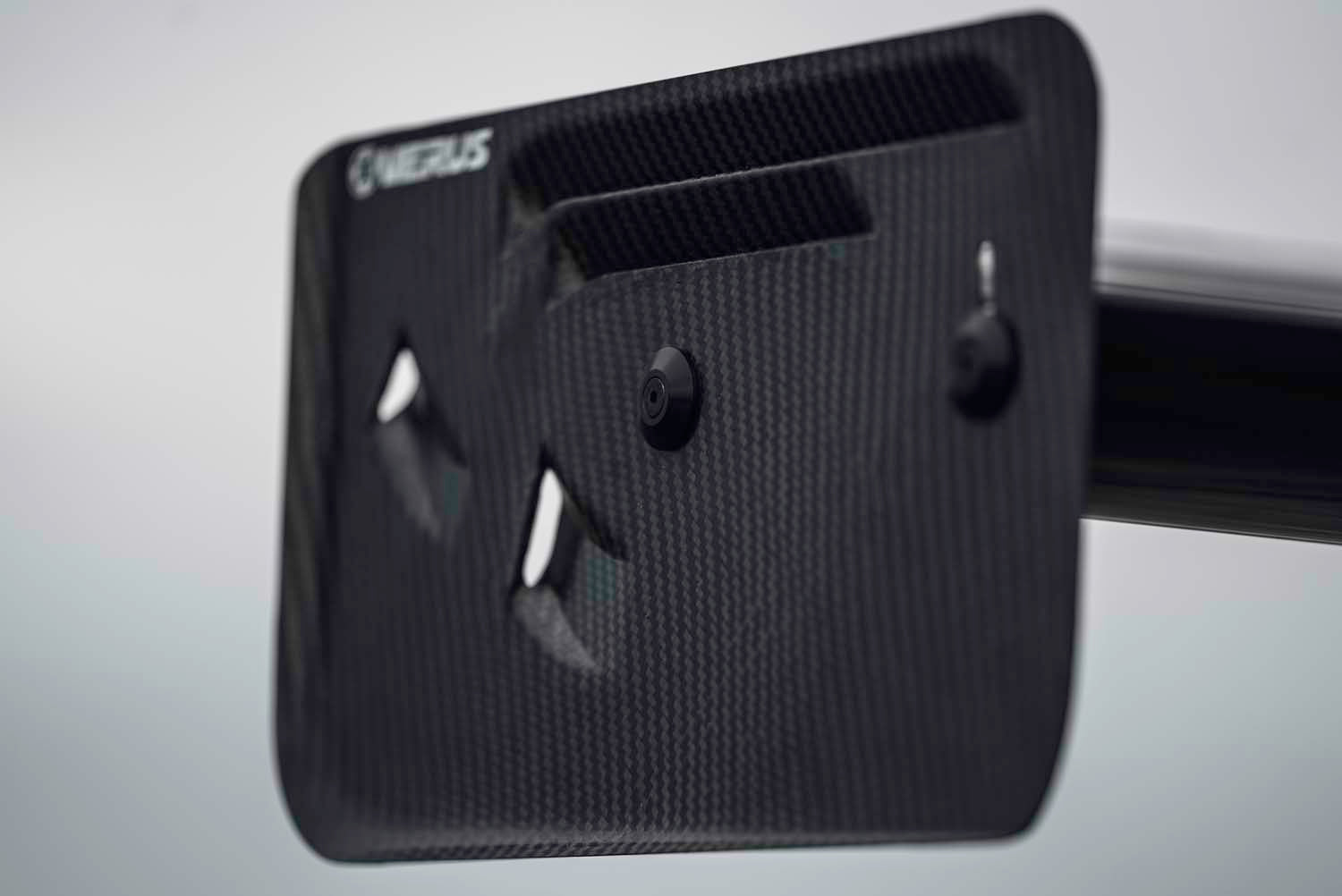

Carbon Vented Endplate (2)
Billet Swan Neck Mount (2)
Billet Swan Neck Upright (2)
Carbon Ducktail Spoiler
Gurney Flap
3M VHB Double-Sided Tape, Gurney Flap
Drill Template
Hardware Kit, Includes All Necessary Hardware for Install

Features

CFD Optimized Airfoil

Highly Efficient (Great L/D)

15 Total Adjustment Angles (-1 to 14 degrees)

Lightweight and High Strength

Capable of Generating and Handling Over 700lbs of Downforce at 120MPH

Swan Neck Design for Improved Efficiency from the Wing Element

Specifications

Rear Wing

2x2 Twill, 3k, Pre-Preg Carbon Fiber

Cured in an AutoClave

Carbon Inner Rib for Strength

Carbon Endplates

300mm Chord w/ 1581mm Length (PCA Spec)

Duck Tail

2x2 Twill, 3k, Pre-Preg Carbon Fiber

Cured in an AutoClave

Aluminum Mounts Bonded In

Double-Sided Tape and Foam Pre-Applied



Mounting

Machined 6061-T6 Aluminum Mounts and Uprights

Military Spec (NAS) Hardware On Wing


Stainless Hardware Throughout
